UMD 750 kg ED 6244

Intended for staff working at disassembly materials containing asbestos or lead.

It has a decontamination tunnel 5 compartments equipped with 2 showers supplied with hot water, a waiting room, a spacious transitional room for undressing, a heated changing room with lockers and a separate technical room.

Continuous air filtration by negative pressure is ensured by the innovative R system control And R Cleaner developed by our team for the UMDs in the EVO range.

The showers have a wastewater filtrationwhich retains the asbestos particles, before sending the water to the sewer system.

The UMD EVO 108 (3.15 m x 2 m interior / 4.5 m x 2 m exterior) is entirely constructed of 30 mm sandwich panels (galvanized steel foam galvanized steel), which ensures a good insulation to the cold and to the heat.

Technical specifications:

Structure

• Constructed entirely from extruded aluminum profiles and 30 mm sandwich panels (galvanized steel foam galvanized steel)
• Galvanized chassis with one 1000 kg axle (ALKO) and overrun brakes
• 3 wheels of 195/50 R (IC 900 kg)
• The AR pilots are recessed to prevent breakage during maneuvers.
• 4 stabilizing crutches
• 1 handrail on the access doors 1 pull-out step per access
• Reinforced drawbar with a 1600 kg pulling capacity and jockey wheel
• Weight: 750 kg.


Certified airflow assessment in accordance with the decree of April 8, 2013 and ED6244 2020

Interior configuration

• Opening and closing the automatic extractor hood
• Waste disposal hatch with bag or longopac system
• Filter cartridge disposal hatch for masks from the hygiene shower
• Timer for switching off the extractor at the end of the shift
• Resting bench in the dirty airlock, the transitional airlock, and the clean airlock
• Coat hooks in all the airlocks
• Rot-proof wood flooring (marine plywood) covered with epoxy paint.
• 12V White LED Low Voltage Lighting
• 2 separate showers, each 1m x 0.80m
• 3 cabinets with hooks and 220V sockets

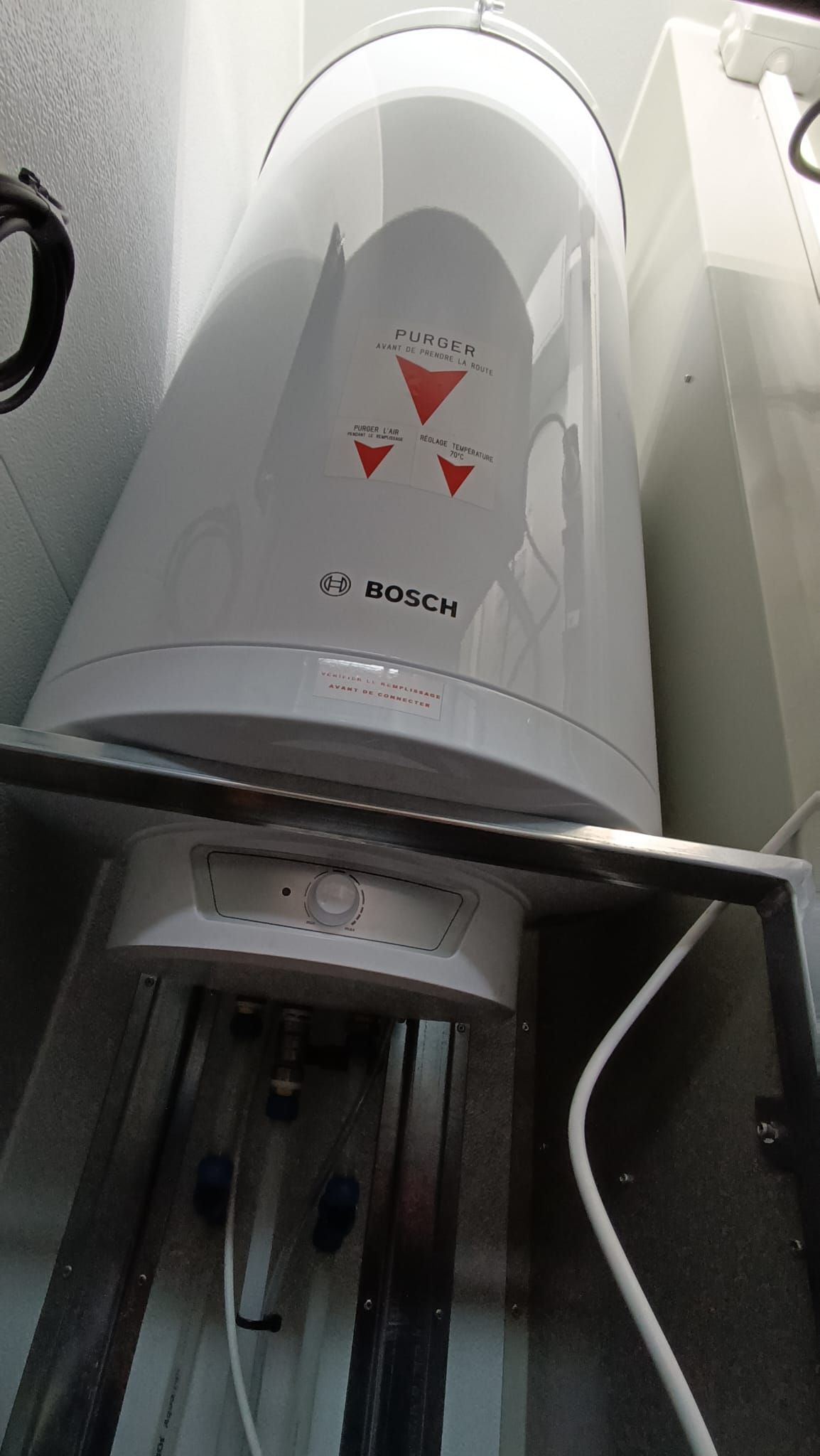

• 100L electric water heater
• 2 double filtration blocks for shower water drainage
• Polyester washbasin with hot and cold water, soap dispensers
• 2 diaphragm pumps with pneumatic control from the showers for wastewater drainage
• Fan heater (split) 2000 W
• NFC 15-100 electrical panel with 30 mA protection
• PEX plumbing
• Ventilation grilles to ensure perfect air circulation

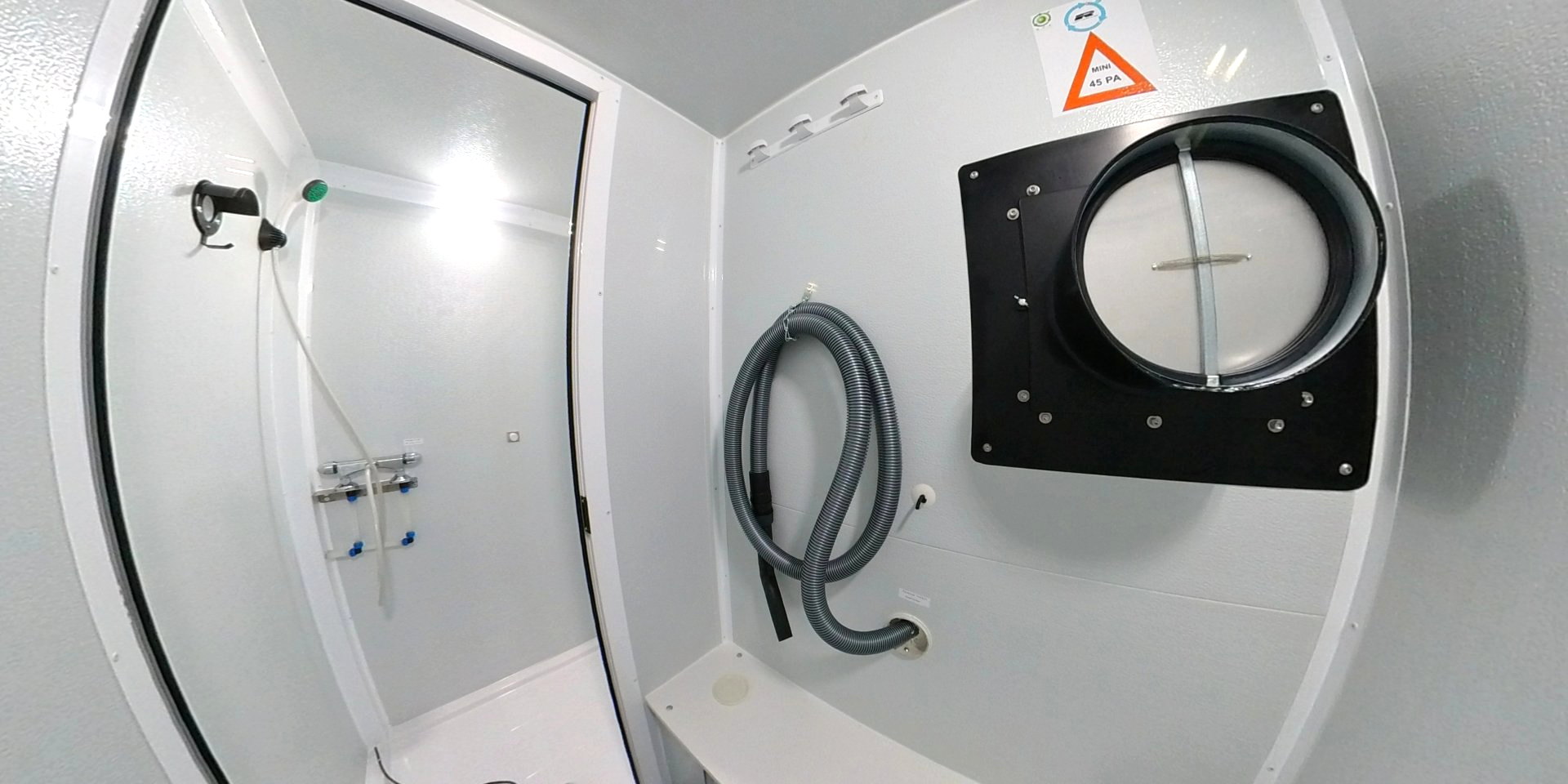

• 600 m3/h extractor fan equipped with an H13 HEPA filter
• BEA "R Control" system for air circulation management
• Vacuum cleaner with THE filter

• An oversized mechanism to protect your UMD:
• ALKO axle with a load capacity of 1000 kg
• reinforced galvanized chassis
• low wheels
• load capacity of 900 kg per wheel
• Braked drawbar and AL-KO coupling head with a towing capacity of 1600 kg







  • Compact and lightweight, it is widely used by roofing, earthmoving, industrial maintenance, and public works teams, without the drawbacks of a large decontamination trailer for moving around in urban or industrial environments.







    • Its GVWR of 750 kg allows towing with a B license if the total GVWR does not exceed 3500 kg.
