Office under pressure

Protecting yourself at landfill sites, contaminated land sites, and asbestos-bearing sites

The EVO SX38 office bungalow is specially developed for the protection of workers on classified sites such as landfill sites, contaminated soil sites, asbestos-bearing land, etc.



THE permanent air filtration (H13 or H14) by depression is ensured by the innovative R system control developed specifically for EVO SX38 decontamination units.

The power of the Rcleaner extractor is managed automatically by an electronic device which increases or decreases the pressure inside the bungalow according to the setpoint.

The pressure setting is managed automatically when a door is opened or closed.



The EVO SX38 office bungalow is entirely constructed of aluminium profile and 30 mm sandwich panels in white lacquered galvanized steel high density foam polyester) allowing for good insulation against cold and heat.

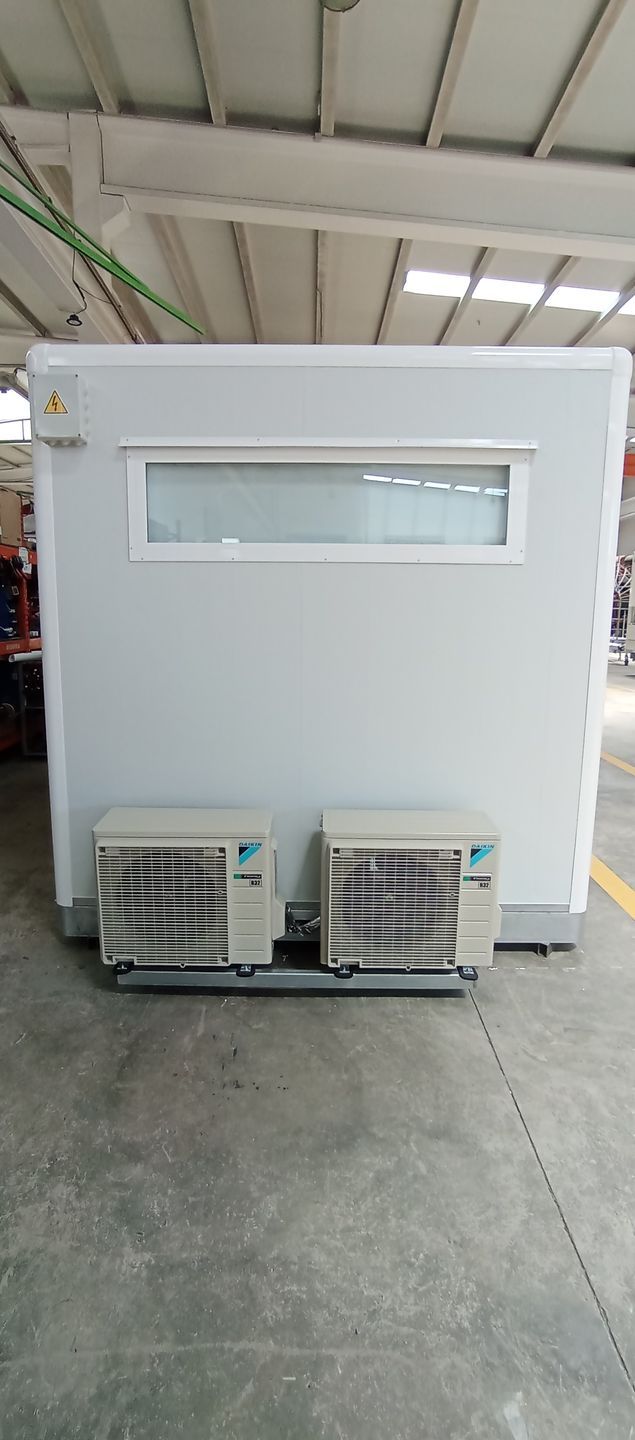

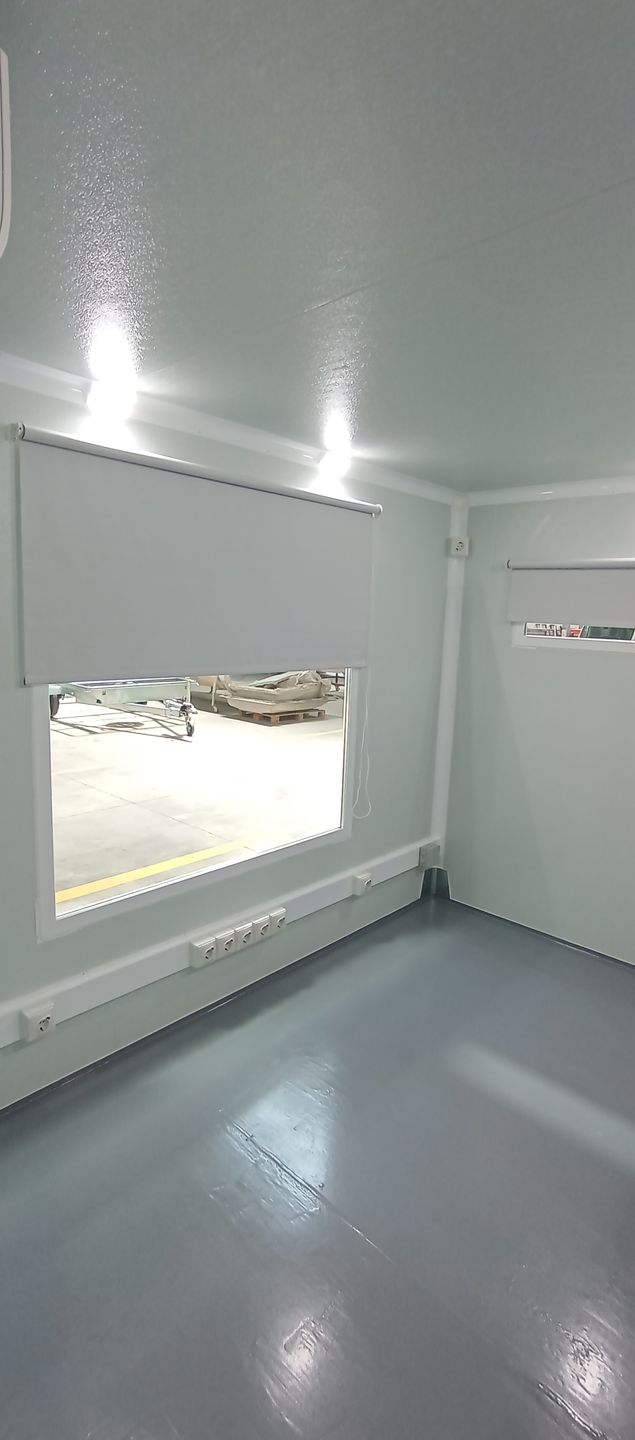

The fixed windows are designed to provide good thermal and sound insulation (4/16/4), the bungalow is equipped with reversible Daikin air conditioning ensuring comfortable use in summer and winter.





Technical specifications:

Structure


  • Hot-dip galvanized steel chassis, equipped with 6 CE-approved lifting points
  • Constructed entirely from extruded aluminium profiles and 30 mm galvanized and lacquered steel sandwich panels.
  • Panels: assembled with aluminum profiles that ensure a self-supporting and solid structure. Weather and UV resistant.
  • Total weight: 1500 kg




Interior configuration


  • Self-illuminating guidance in case of power outage
  • Rot-proof wooden flooring covered with a 10 mm layer of rubber. in the workshop to cushion the impact of falling heavy objects

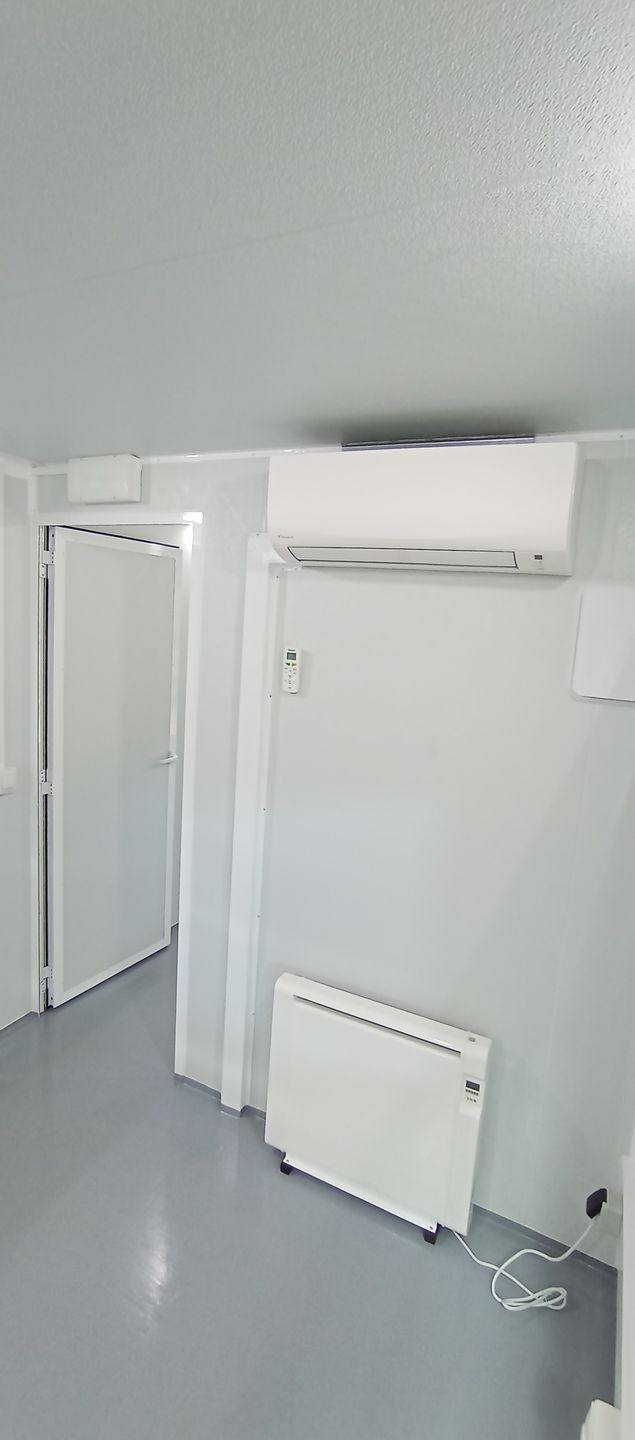

  • Air conditioning (heating/cooling): Daikin
  • 12V White LED Low Voltage Lighting
  • 2 x 1500W Heaters

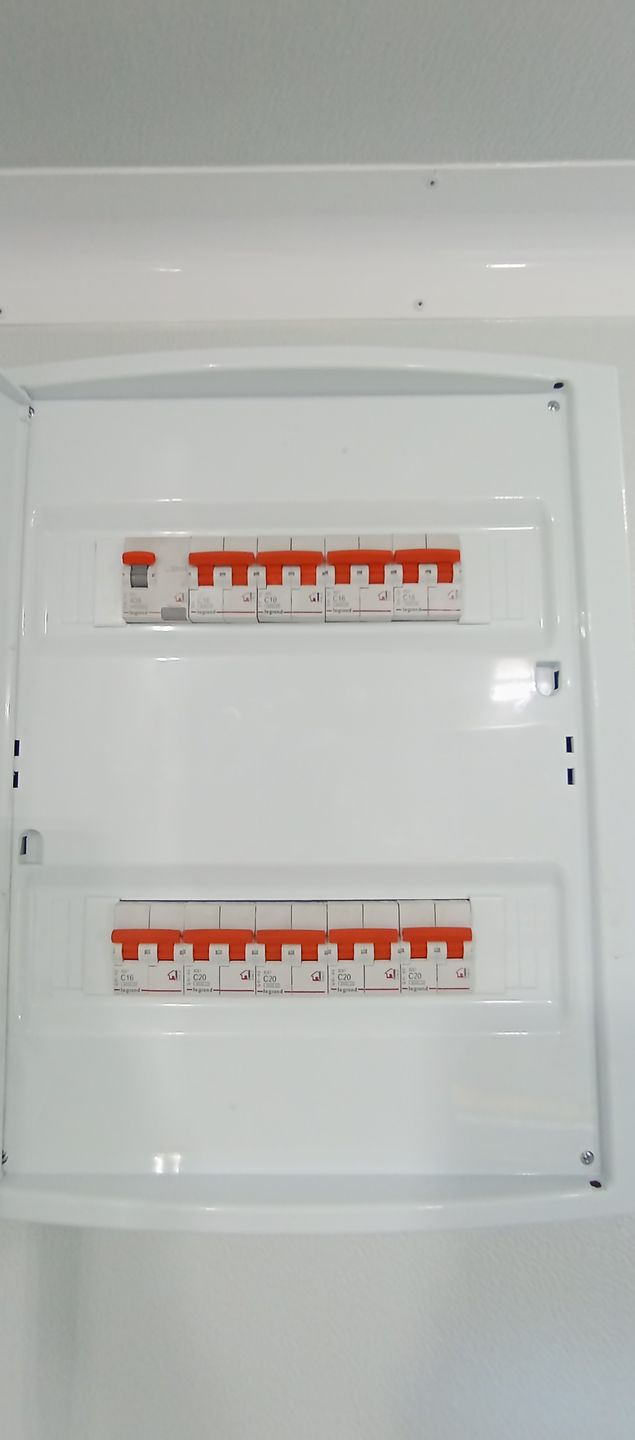

  • NFC 15100 electrical panel with 30 mA protection

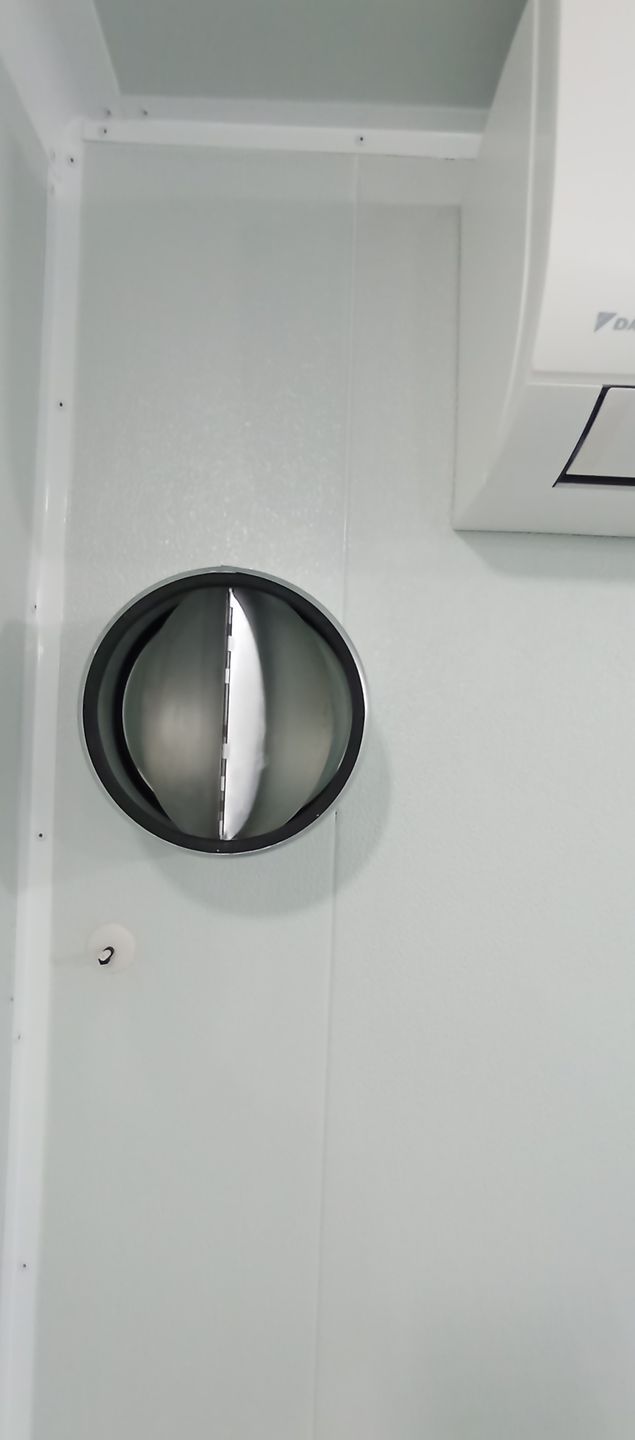

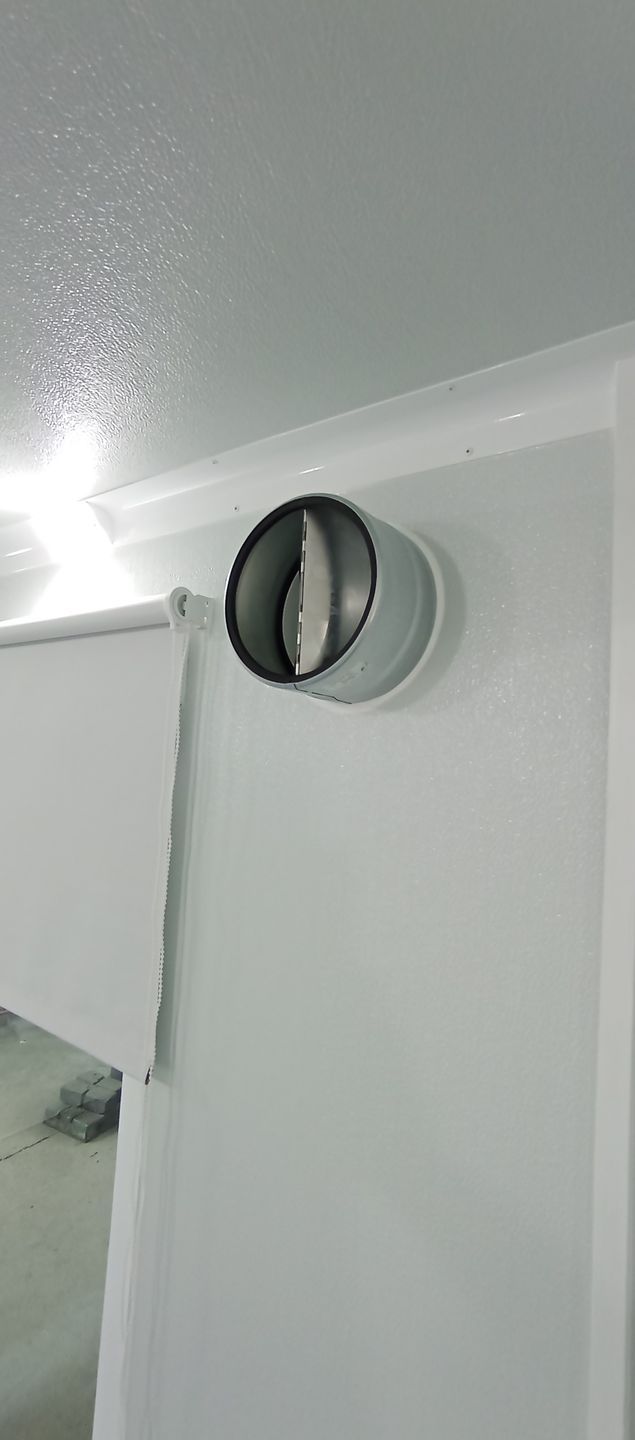

  • Extractor equipped with an HEPA H13 filter for normal unit operation
  • 1 single-channel pressure controller
  • 1 EFM for automatic extractor speed variation
  • BEA "R Control" system for management air circulation


Key features:


  • EVO SX38 allows you to prevent the risks of exposure to contamination.
  • The EVO SX38 is easily transportable on a platform
  • EVO SX38 allows you to work in degraded mode
  • Effective insulation (for both heating and cooling), the reversible air conditioning allows you to work comfortably


The EVO SX38 decontamination bungalow is the model already adopted by landfill centers in France (Suez, Veolia).
